SVC series pipeline endoscopes are widely used in various fields. In the industrial field, pipeline endoscopes can help engineers to detect the operation status of pipelines and find potential faults in time; in the municipal field, pipeline endoscopes can be used to detect the internal condition of pipelines and provide strong support for municipalities.

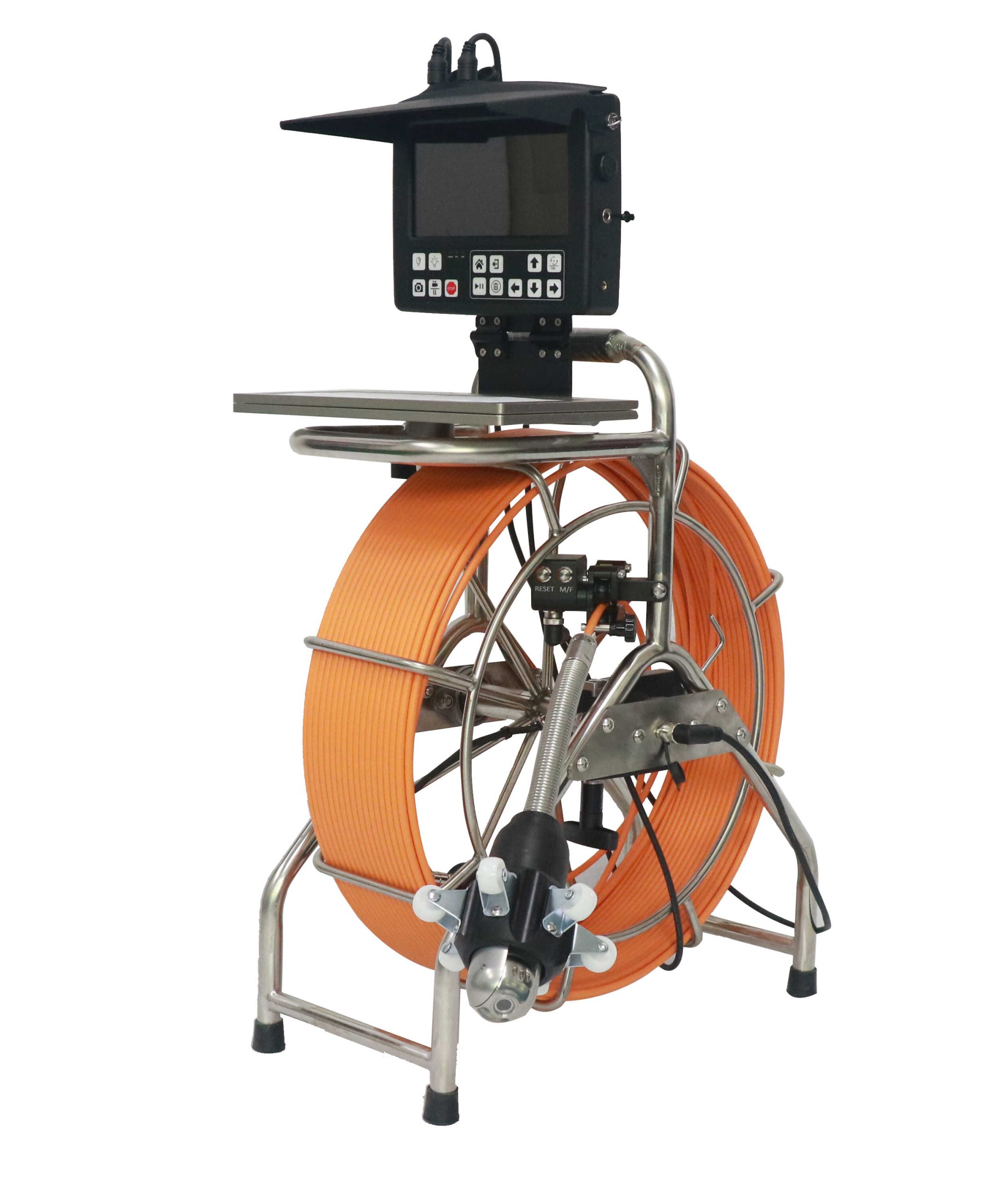

SVC industrial pipeline borescope, mainly observing industrial and municipal pipelines, a machine with multiple probes, applicable to a wide range. Including 10mm, 18mm, 23mm, 29mm, 33mm rotary focusing lens, 40mm, 45mm binocular rotary lens, 50mm rotary focusing lens. Rotatable lens outer diameter is 32, 33, 45, 50mm. Diameter 33, 45, 50mm rotating lens is waterproof, the lens can be flipped 180° and rotated in 360°, and the high-brightness LED provides sufficient illumination for the dark inspection site. This makes it easy and comfortable to conduct clear video inspections of the inside of pipes and vessels.

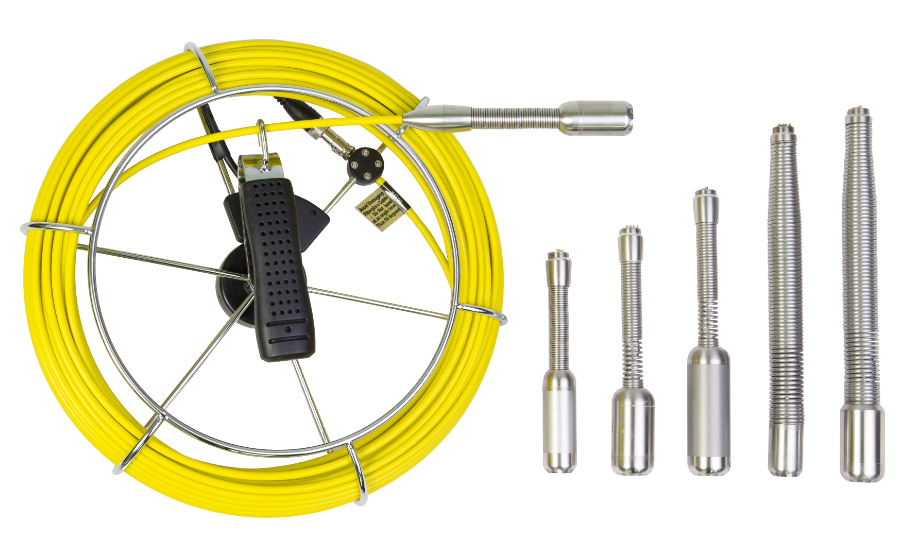

Lenses are available in 8 different sizes, 10, 18, 23, 29, 33, 40, 45, 50, of which 45mm straight side-viewing dual lenses can be rotated 360°, 33, 50mm can be rotated 360 °, 180 ° flip, focus motorized adjustment
The 33 and 50 mm pipe endoscopes are compact and portable. It utilizes a high-definition optical system that provides a wide field of view and clear images to clearly identify cracks or other anomalies in the pipeline.The 33mm lens is very short and small, making it easy to make corners in the pipeline, and requires no professional training, making it user-friendly.

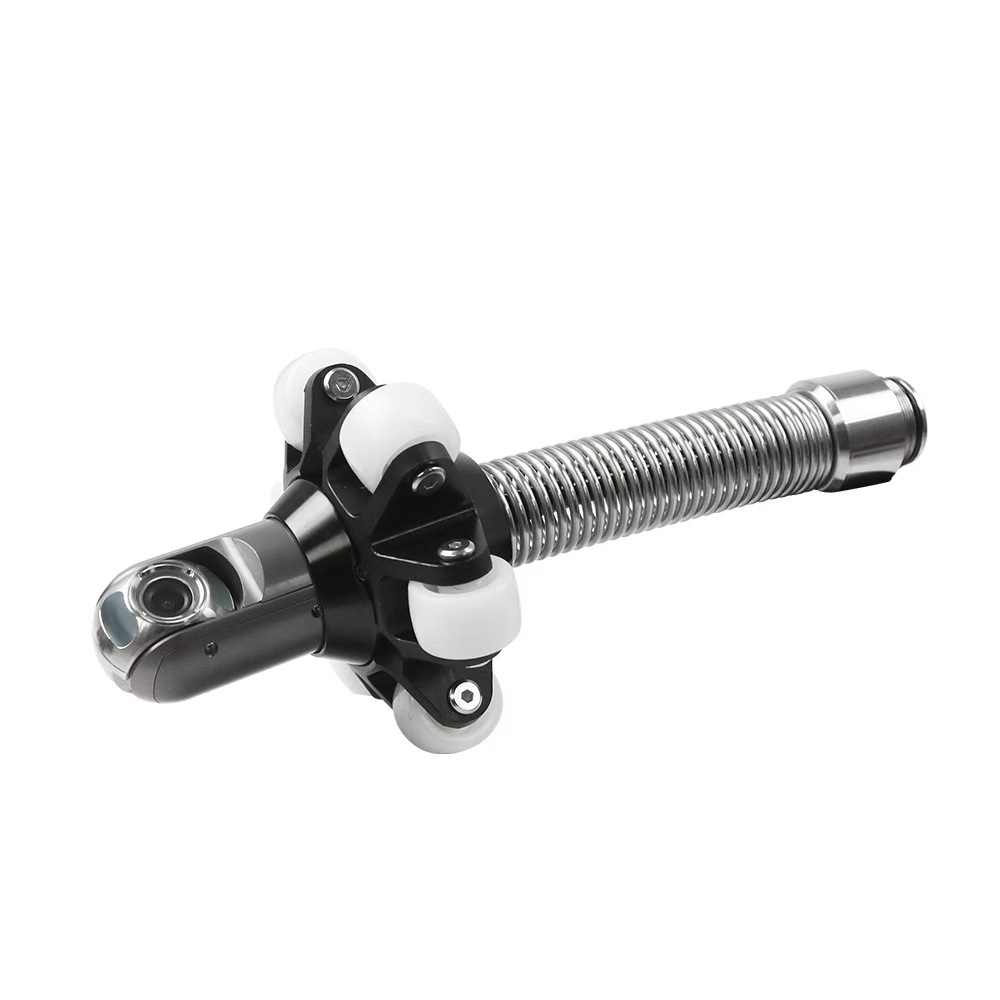

The 33 and 50 mm pipeline endoscopes are powerful in that it can adjust the focal length by rotating the adjustment knob to make the image more clearly visible. In terms of lens selection, users can choose the desired lens by changing to accommodate different diameters and types of pipes. In addition, the borescope also has photo and video recording functions, which are convenient for users to record the inspection process and results
45mm double lens, can look straight at colleagues can look sideways, easy to use, the controller can control the lens level, up and down rotation; adjustable light intensity.
Color widescreen LCD monitor presents high quality images. -Quickly take photos, videos and storage, 16G
Disk storage.
Camera Size（mm） | Φ10, Φ18, Φ23, Φ29 dynamic balance lens, Φ33 rotary focus, Φ40 dynamic balance lens, Φ45 rotary double lens, Φ50 rotary lens | ||
bobbin： | 20-150m Pusher Cable Rack | ||
Display Size： | 8 or 10 inch LCD monitor | ||
Control Box Mainframe: | HD DVR Video Storage Control Box | ||
Lithium batteries: | 7000MAH 18650 Lithium Battery | ||
Toolbox: | ABS engineering plastic box | ||
Sensors: | 1/4” HD CMOS 2.1million pixels | ||
camera rotation： | 180° flip up and down, 360° infinite axial circulation | ||
Camera field of view: | 120° | ||
Shots: | Detachable camera for connection to a variety of different cable swivels | ||
(electric) cable | Fiberglass actuator cable diameter Φ7/Φ9.0mm Cable length 20-150m *Stainless steel portable cable holder | ||
LCD screen control main unit | HD video recording system with external 16G USB flash drive Built-in character implantation system with keyboard 3 kinds of video input interface Hand-controlled recording mark wind key Audio, video output Built-in rechargeable 7000mA lithium battery pack, can support continuous 4-6 hours of work | ||
