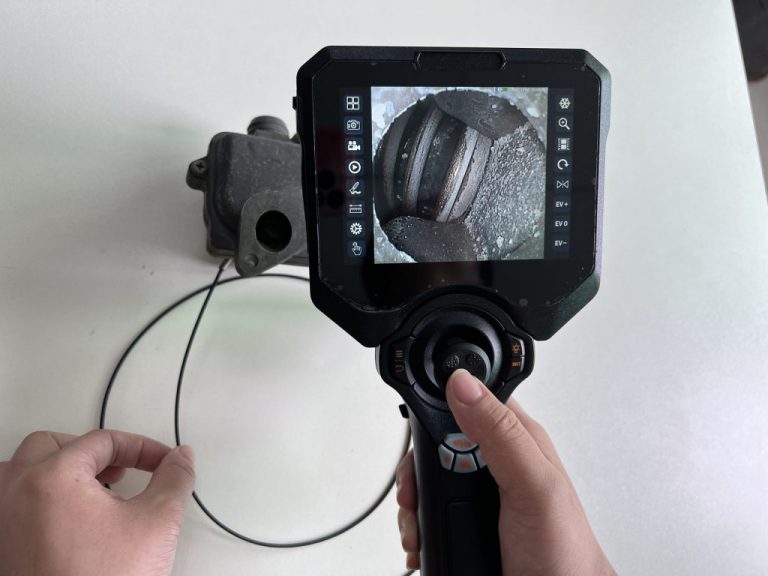

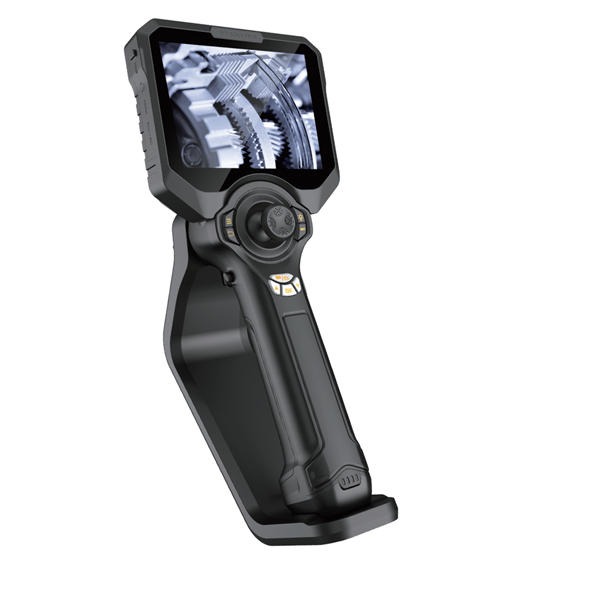

SVE Pro series is a high-performance multi-purpose machine-controlled industrial borescope from JARVISION, which adopts a high-definition industrial camera and a 5.5-inch AMOLED touchscreen display, effectively restoring true colors and making the inspection images clearer.SVE Pro is like a dexterous snake, which can navigate through all kinds of narrow spaces. Its one camera with a resolution of up to 2 megapixels transforms the view from dim corners into a clear image that is delivered to the operator’s eyes.
Technical Advantages
1. Portable design, easy to operate, long working hours, in a narrow space to check all kinds of industrial pipelines or complex equipment corrosion, cracks, welding, foreign objects, wear and tear and internal parts processing, and through a fine comprehensive inspection;
2. ergonomic design concept, the appearance of the atmosphere, the use of the feeling of perfection, a hand to grasp the locking function, the unique patented omni-directional control mechanism design;
3. various specifications of the camera is optional, sapphire glass protection, fiber optic lighting output;
4.High-resolution 5-inch touch screen, high-power light source with high-efficiency light-conducting fiber to provide lighting security; advanced lens design, powerful image processing chip to ensure first-class image quality;
5. Powerful graffiti function can mark the defective parts, and find out where the problem is more accurately after the inspection;
6. Detachable monitor, and through the quick connectors to achieve rapid replacement of the handle, can adapt to a variety of testing environment;
7. One hand can accurately control the front end of the probe guidance, reasonable structural design, high stability, clear lens imaging, flexible probe guidance, easy to operate, low failure rate, long life;
8、Mechanical hand-held integrated design Compatible with a variety of sizes of display screen
9、Compatible with a variety of specifications pipeline Quick-open pipeline replacement structure
10, can be configured with a variety of lighting sources can be replaced with different focal length lens
11、High frame rate image sensor (optional) Dual-engine power supply, long battery life
12、High-precision three-dimensional measurement function (high) Large-capacity storage space
| Host system | |||||||||
| display | 5-inch FHD AMOLED touch screen display | ||||||||
| Display screen resolution | 1920*1080 | ||||||||
| user interface | Menu navigation using touch screen, physical buttons, and joystick | ||||||||
| Image enlargement | Support real-time 7x magnification, and partial 8x magnification when looking back at images | ||||||||
| LED brightness level | High and low brightness modes, each with 5 levels of brightness adjustment | ||||||||
| image display | Equipped with original color mode, black and white mode, negative mode, high color mode, close range mode, and far range mode | ||||||||
| Screen backlight brightness | Adjustable | ||||||||
| image recording | Can take photos and videos, and capture them during recording | ||||||||
| Screen freeze | support | ||||||||
| file format | Image JPEG/BMP, Video MP4 | ||||||||
| Watermark setting | Support time/image/directory watermarking | ||||||||
| Image scaling | Support zooming in and out of images through pinch gestures | ||||||||
| Image flipping | Can rotate clockwise by 0 °, 90 °, 180 °, 270 ° | ||||||||
| Image Preview | List preview | ||||||||
| File operation | Full screen viewing of images/gesture pinch to zoom in/out of images/delete/rename/view file details, etc | ||||||||
| Flashing lights | 5-level adjustable | ||||||||
| delay time | Adjustable | ||||||||
| C gesture function | Equipped with automatic flipping function for C-gesture (TM) images | ||||||||
| Text Annotation | Full screen text, graffiti overlay | ||||||||
| Graph annotation | Handwritten lines, arrows, boxes, circular markings, text annotations | ||||||||
| Cross ruler | support | ||||||||
| Wireless Bluetooth | support | ||||||||
| USB interface | support | ||||||||
| Output port | HDMI (standard)/VGA (optional) | ||||||||
| Storage medium | Standard 32GB capacity SD card | ||||||||
| network connections | 4G (only supports high-end version) | ||||||||
| WiFi（Only supports high-end version） | |||||||||
| LAN port (only supports high-end version) | |||||||||
| 3D measurement function | Only supports high-end version | ||||||||
| Menu Language | More than ten languages including Simplified Chinese, Traditional Chinese, English, Japanese, Korean, French, German, Portuguese, Spanish, Russian, Italian, Dutch, etc. can be downloaded and input through the internet | ||||||||
| System security protection | Password lock protection function | ||||||||
| Overall dimensions of the host | 295mm*145mm*163mm | ||||||||
| Host weight | ≤1.5kg（Including battery, excluding instrument box and accessories） | ||||||||
| Pipeline system | |||||||||
| Lighting source | White light/infrared light/ultraviolet UV light (default white and infrared light) | ||||||||
| Pipeline type | Standard version (white light) | High end version (white light) | |||||||

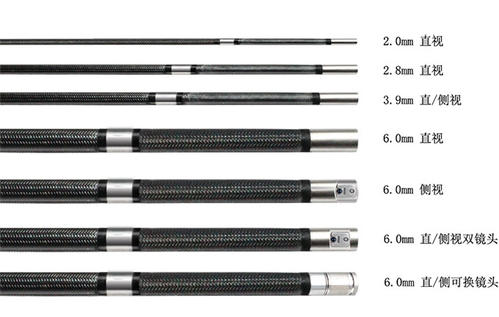

| Probe diameter（±0.1mm） | φ2 | φ2.8 | φ3.8 | φ3.9 | φ4.8 | φ6 | Φ8 | φ4 | φ6 |
| Camera Pixel | 160000/300000 | 520000/1 million | 1 million | 1 million | 1 million | 1 million/2 million | 1 million | 1 million | 1 million/2 million |
| Observation direction | Direct gaze | Direct view/side view | Direct view/side view | Direct view/side view | Direct gaze | Direct view/side view | Direct view/side view | Direct gaze | Direct view/side view |
| Depth of Field | 5-50mm | 5-50mm | 5-80mm | 5-100mm | 8-80mm | 8-80mm | 8-80mm | 5-100mm | 8-80mm |
| Field of view angle | 120 | 120 | 120 | 120 | 85° | 120° | 120 | 120° | 100° |
| Pipeline working length | 1-1.5m | 1-3m | 1-3m | 1-5m | 1-5m | 1-7m | 1-7m | 1-3m | 1-7m |
| Lighting method | Front LED/rear fiber optic light guide | ||||||||
| Unidirectional bending angle of probe | ≥120° | ≥150° | ≥150° | ≥150° | ≥150° | ≥150° | ≥150° | ≥150° | ≥150° |
| Measurement function | / | Support point-to-point, point-to-point, point-to-point, multi line segment, and area measurement functions | |||||||
| measurement accuracy | / | 0.01mm | |||||||
| measurement error | / | 5% | |||||||
| Probe guidance capability | 360 ° all-round arbitrary guidance | ||||||||
| Pipeline material | Tungsten wear-resistant braided tube | ||||||||
| Probe material | Titanium alloy protective shell | ||||||||
| Guided control mode | Mechanical control | ||||||||
| Pipeline compatibility | Replaceable consumable design | ||||||||
| Protector | Buffer protection device for connection between host and wear-resistant tube | ||||||||
| Pipeline oil resistance and corrosion resistance | Corrosion resistant, customizable oil resistant pipelines | ||||||||
| Waterproof grade of probe | IP67 | ||||||||
| Power supply technical parameters | |||||||||
| Power supply mode | INPUT:220±10%V 50HzMunicipal electricity，OUTPUT: | ||||||||
| Battery capacity | Host battery (non removable): Voltage: 3.7V Capacity: ≥ 8000mAh; Handle spare battery (detachable): Voltage: 3.7V, Capacity: | ||||||||
| working hours | Host battery+backup battery ≥ 5 hours | ||||||||
| Operating environment | |||||||||
| Operating temperature of the whole machine | -10-50°C | ||||||||
| Probe operating temperature | -20-60°C | ||||||||
| Storage temperature | -20-60°C | ||||||||
| relative humidity | 15-90% | ||||||||
