SVM Pro series motorised industrial borescope is a new high-end visual inspection product with ultra-high performance from Microelectronics. This product adopts high-definition industrial camera and OLED industrial high-definition touch LCD screen, presenting clearer and brighter inspection images. The combination of touch screen and physical buttons makes the control more convenient. The pipeline can be quickly replaced, the display can be replaced, the battery can be replaced, the flexibility is stronger, suitable for different scenarios of inspection work. Unique dual-engine power supply technology, with stronger endurance.
Binocular stereo vision measurement method has the advantages of high efficiency, suitable accuracy, simple system structure, low cost, etc. It is very suitable for on-line, non-contact product inspection and quality control in manufacturing site. In the measurement of moving objects (including animals and human forms), stereo vision methods are a more efficient measurement method because image acquisition is done in an instant. Binocular stereo vision system is one of the key technologies of computer vision, and acquiring distance information of a spatial 3D scene is also the most basic in computer vision research.
SVM Pro Binocular Measuring Endoscope Technical Advantages
1. High measurement accuracy, zoom measurement, convenient and easy to use. Its technology can be widely used in military industry, aviation, precision industrial measurement, object recognition, virtual reality, scene reconstruction, and survey fields. From the key components to the measurement system, independent domestic, fully able to meet the user’s needs;
2. Integrated handheld design, 7-inch high-definition strong light projection LCD display resolution 1024 * 768, the sun is still colourful and dazzling; the use of entity buttons combined with touch-screen virtual keypad operation, multi-touch capacitive screen, touch precision, improve the accuracy of detection efficiency. The host adopts high-performance intel processor, 4G high-speed memory, 128GSDD, to ensure the smoothness and stability of data transmission.
3. Detection lens outer diameter 4.0 \ 6.0mm, the lens external titanium alloy material, high-strength tungsten wire preparation detection line, detection length of 2-8 metres, the control handle adopts a 360 ° all-round electric guidance, unilateral bending angle of > 120 degrees, the probe part of the use of high-strength wear-resistant titanium alloy shell, wear-resistant sapphire lens at the front end, to fully enhance the probe protection function; the probe guiding joints using Laser welding technology is adopted in the guiding joints of the probe to ensure the flexibility of the guiding bending part and at the same time to make it more solid and reliable. Detection of the hose outer skin using multi-layer tungsten wire mesh preparation technology, to ensure flexibility at the same time, wear resistance increased several times and have a soft rubber cushion protection sleeve is not easy to break.

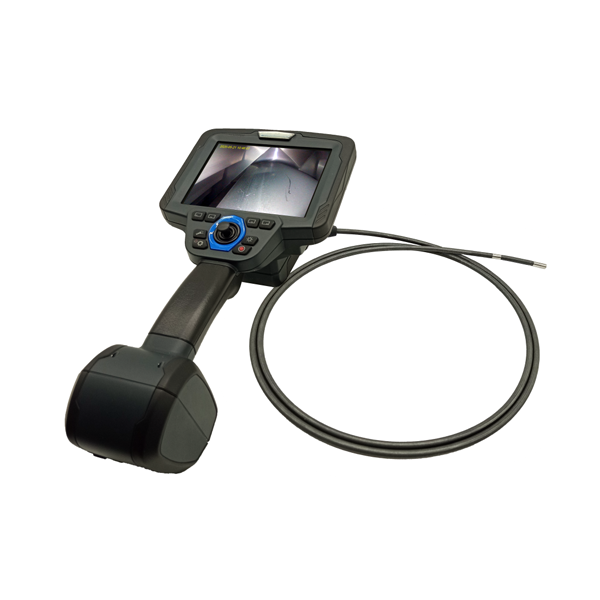

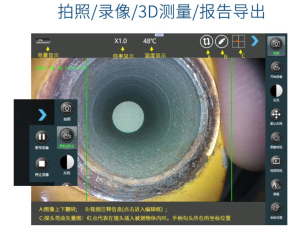

4. Embedded operating system, dual photo and video functions, with pictures and video naming, editing, browsing, deleting, image five-level scaling, screen brightness, saturation, contrast, hue, etc. can be freely adjusted, dynamic negative function, can produce black and white high contrast real-time image to distinguish between cracks and fine lines, support for the U disk to export data, inspection report generation and other functions. System built-in 4GB standard flash memory, 128GB SSD hard drive, 7000MAH replaceable lithium battery.
5. Binocular three-dimensional scanning inspection lens using dual camera + dual lens mode, with a large wide-angle detection capabilities; rapid replacement of the pipeline, convenient operation
6. The front patch LED light source instead of the traditional easily damaged fiber optic light source, new lighting structure design, high brightness, long life, brightness stepless adjustment function, to adapt to the extremely dark space and other harsh environment detection; anti-glare design to improve the lighting effect, to help provide true colour reproduction and the scene scene.
7. Three-dimensional measurement camera using high-definition 1080P programme, high image clarity, measuring three-dimensional point cloud density;
8. Large measuring range, can accurately measure the size of defects in the case of object distance 80mm, you can get accurate measurement report;

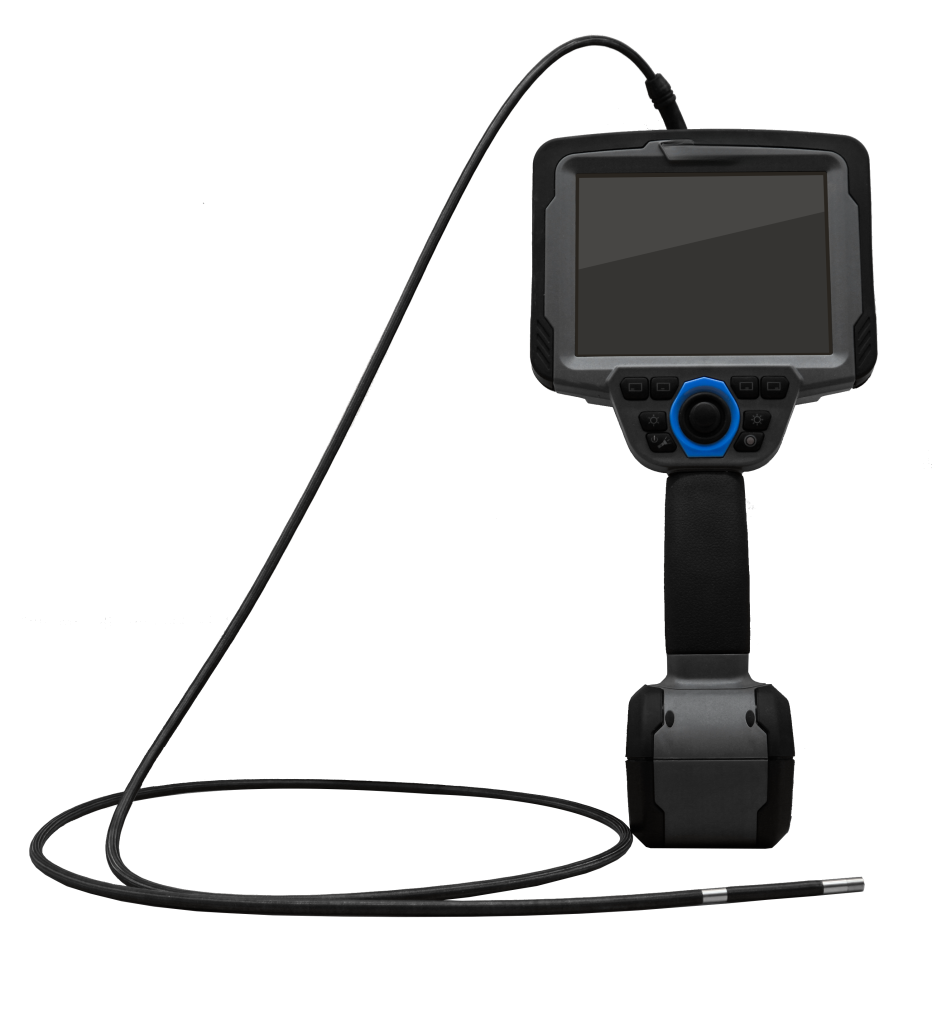

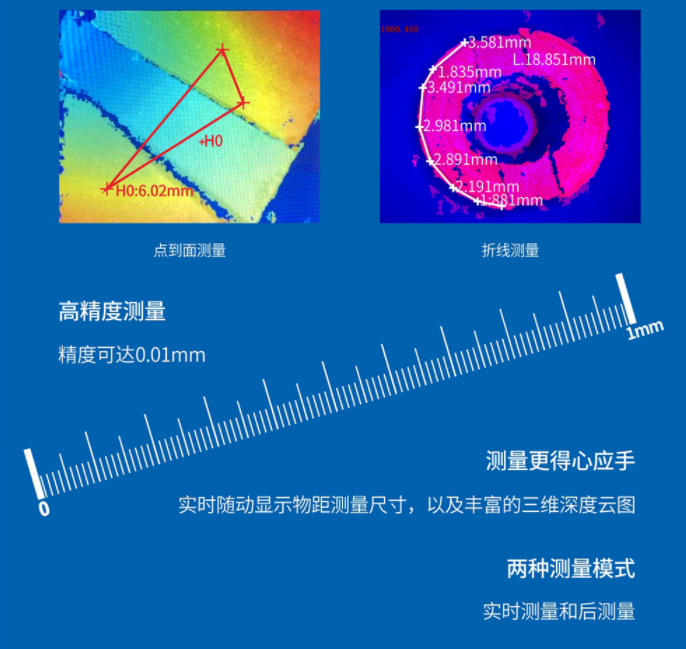

9. Measurement methods can meet a variety of customer measurement needs, including point-to-point, point-to-line, point-to-face, curve measurement;
10. In order to facilitate defect judgement, it has the functions of defect negative enhancement display and defect colour rendering marking.
11. With post-measurement capability, convenient for post-analysis and processing of the collected images;
12. With ambient temperature display and high temperature alarm function;
13. High detection accuracy, precision at 0.01mm, measurement error value ≤ 3%.
14. Unique double-threaded connection structure design, a single pipe line can be matched with different specifications of straight/side view, macro, near-focus, wide-angle, medium-focus, telephoto and other lenses, suitable for detecting targets at different distances, presenting a clearer image.
| Insert tube | diameter | 2.8mm/4mm/6mm straight and side view replaceable | |
| length | customisation | ||
| texture of material | High durability multi-layer tungsten steel wire braided layer | ||
| Guiding section | Angle up/down/left/right | ＞150° | |
| Guided operation | 360 degree electronic control (locking, stepping, fine adjustment, reset) | ||
| video camera | pixel | 1 million | |
| Depth of Field | 8-80mm/15mm-∞ | 3mm-∞Electric focus | |
| Lighting brightness | 18000lux/50000lux | ||
| system | Main controller weight | 2.8kg | |
| Main controller size | 351*163*122 | ||
| Host structure | ABS impact resistant material encapsulation | ||
| Display frame rate | ＞25frame | ||
| Output interface | USB3.0、HDMI | ||
| Input interface | Enhanced professional interface | ||
| Temperature sensor | Built in temperature sensor and over temperature alarm system (6mm optional) | ||
| monitor | 7 inches | ||
| Brightness control | Manual 10 level adjustment | ||
| storage medium | Built in 4GB standard flash memory and 128GB SSD | ||
| Software | operating system | Embedded operating system | |
| Image control | Five level magnification, image flipping | ||
| image processing | Negative film, defect enhancement, split screen display defect comparison, defect area measurement, watermark annotation, 12S delayed exposure, color saturation adjustment | ||
| file management | Support image/video playback, editing, deletion, formatting, detection report generation, and file USB export | ||
| Image format | JPEG 1280*720 | ||
| Video format | AVI 1280*720 | ||
| Software Update | Can be upgraded on-site through USB flash drive | ||
| language | Simplified Chinese | ||
| 3D Stereoscopic Measurement | distance | The distance between two points | |
| Point to Line | The vertical distance between a point and a user-defined line | ||
| depth | The depth/height of the intersection between a point and a user-defined plane | ||
| Area/Line | Measurement of perimeter and area of multiple points | ||
| Effective measurement range | 8mm~80mm | ||
| measurement accuracy | 0.01~0.02mm | ||
| Error rate | 1~2% | ||
| Power Supply | AC power supply | 100~240V 50/60Hz | |
| Battery | Interchangeable 7000MAH lithium batteries | ||
| Protection standards | IP65 | ||
| Operating environment | Probe temperature: -20 ℃ -115 ℃ Temperature: -10 ℃~50 ℃ Humidity:<95% | ||
