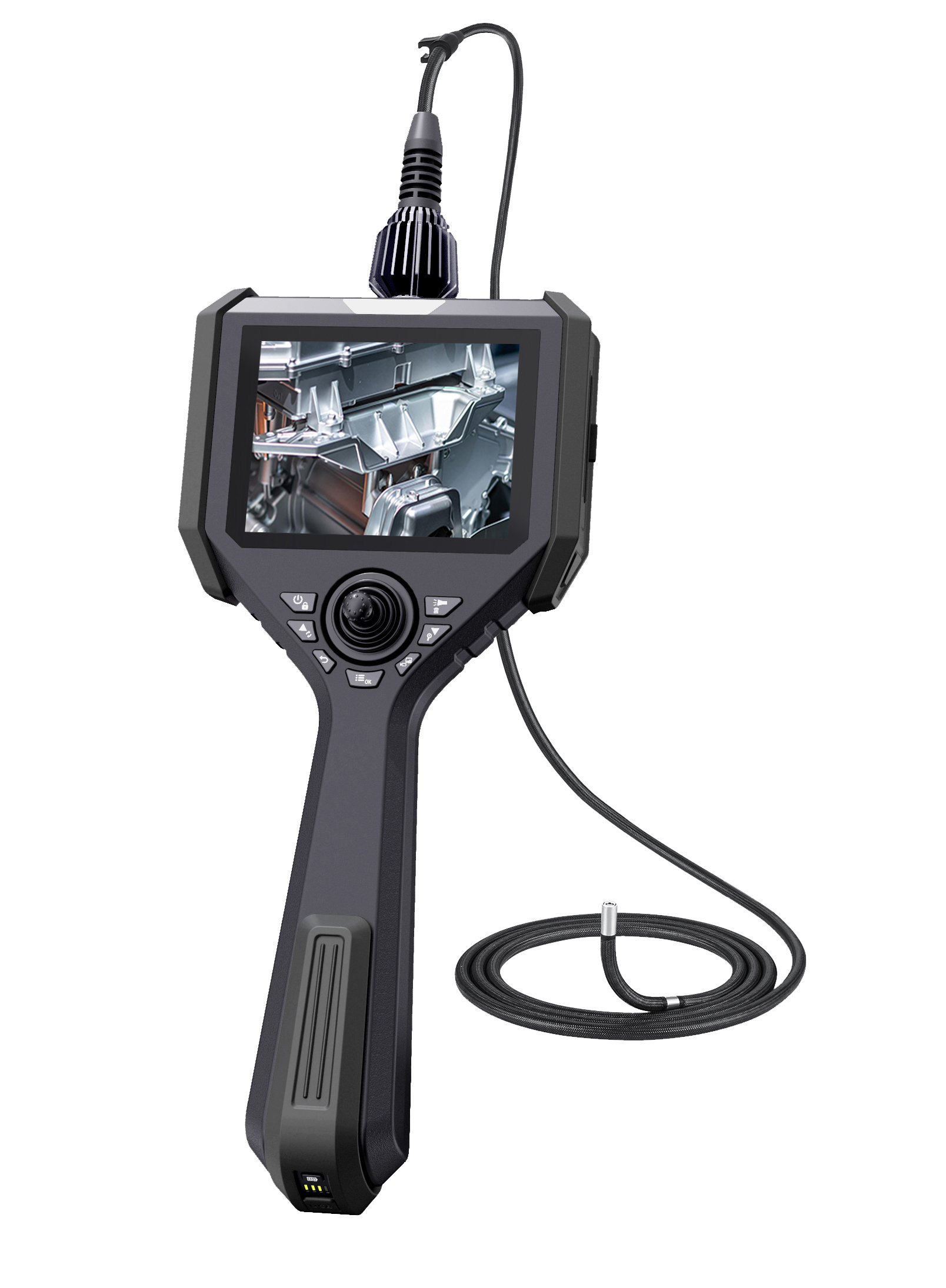

An ultrafine diameter electronic endoscope is an optical instrument with a diameter of about 0.9-2.0 millimeters that has high resolution and high clarity. It can provide a clear image to the monitor through a tiny lens. With a diameter of only about 1 millimeter, the device can easily access many subtle areas for observation.
Ultra-fine industrial endoscopes, with diameters between 0.9 – 2.0 mm, offer significant advantages:
Extremely slim: the extremely small diameter enables it to reach places that are difficult to be reached by other equipment, such as the slits of aircraft engine blades, electronic chip microchannels, etc., so as to realize the inspection of hidden parts.
Flexible maneuvering: with excellent flexibility and agility, it can freely navigate and turn in complex pipelines, adapt to a variety of winding paths, and detect in all directions.
High Definition Imaging: Despite its compact size, it is equipped with advanced optics and image sensor technology, which provides clear and detailed images, making defects and flaws visible at a glance.
Lightweight and Portable: The overall weight is light, handheld operation is not a burden, easy to carry to different inspection sites, enhance work efficiency.
Durable and Reliable: Made of special materials and processes, it has good wear-resistant, corrosion-resistant and bending-resistant properties, adapts to harsh industrial environments and ensures stable operation.
1. portable design, easy to operate, long working time, in a narrow space to check all kinds of industrial pipelines or complex equipment corrosion, cracks, welding, foreign objects, wear and tear and internal parts processing, and through the fine comprehensive inspection;
2. unique locking hook design with dual function, in line with the ergonomic design concept, the appearance of the atmosphere, the use of the perfect feeling;
3. high-definition lens to restore the real image, excellent lighting output, many outstanding performance in one;
4. Ultra-fine electronic industrial endoscopes SVS Pro series diameter contains 0.9 mm, 1.0 mm, 1.2 mm, 1.6 mm, 1.8 mm, 2.0 mm, and the pixels are 160,000 pixels, 300,000 pixels, and 520,000 pixels respectively.
| camera | |
| Probe diameter | 0.9mm、1.2mm、1.6mm、1.8mm、2.0mm |
| pixel | 160000/300000/520000 |
| Field of view angle | 120° |
| system | |
| Effective working length | 1 meter to 5 meters |
| Brightness adjustment | 9-level regulation |
| display | 4.3-inch or 5-inch WVGA (800 * 480) daylight screen |
| Viewing angle of monitor | Full perspective |
| Display resolution | 1024*768 |
| Image resolution | 400*400 、 640*480 、 720*720 |
| Video resolution | 400*400 、 640*480 、 720*720 |
| Image and video formats | Images are stored in JPEG/BMP format, while videos are stored in MP4 format |
| Image flipping | 0°、90°、180°、270°Flip over |
| Looking back at the display | Looking back, it adopts a list preview mode, which allows for full screen viewing/deletion in preview mode/ |
| Image enlargement function | Real time 4x zoom, with 8x local magnification when looking back at the image |
| Menu language selection | Ten languages including Chinese, English, and Russian are available for selection |
| Storage equipment | Standard 32GB TF card |
| data interface | Mini HDIM port |
| Replaceable insertion tube | You can replace the spare insertion tube by yourself |
| Host base | Foldable base |

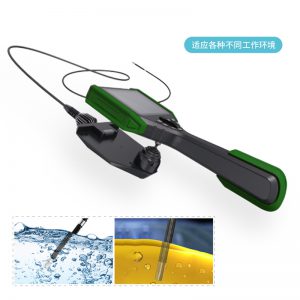

| Protective properties | The probe, objective lens, and pipeline can withstand IP67 oil, water, and corrosion resistance |
| Drop level | 1 meter |
| Power Supply | |
| Power Supply | Rechargeable lithium battery (replaceable) |
| Battery capacity | 4.2V，5000mAh |
| Host working hours | Single battery ≥ 6 hours |
| Charging parameters | DC5V, maximum current 2A |
| Operating environment | |
| Operating temperature of the host system | -10 ° C~50 ° C, LCD screen needs to be preheated below 0 ° C |
| Working temperature of video probe | -20°C~60°C |
| Storage temperature | -20°C~60°C |
| relative humidity | 15 to 90%, no condensation |
