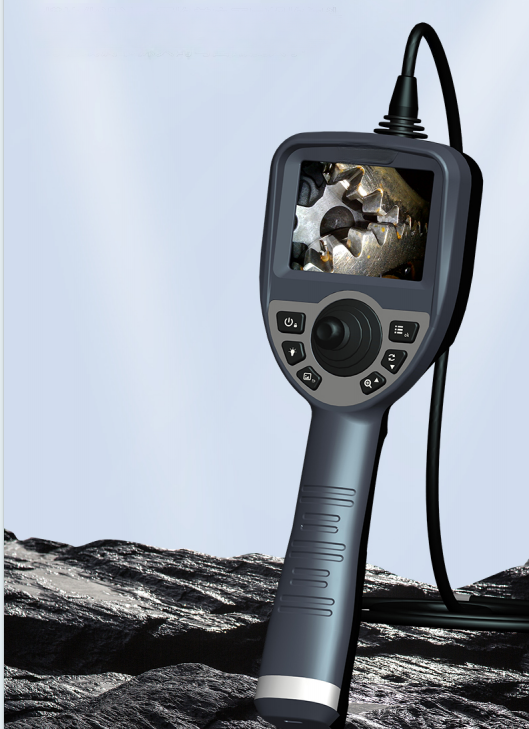

The SVE series industrial borescope is a powerful, practical and convenient tool, making it indispensable in many fields such as troubleshooting, aerospace, and machinery maintenance. By providing clear, high-resolution images, as well as video recording, photography and other functions, to help users more comprehensive understanding of the internal condition of the object being inspected, improve diagnostic accuracy, reduce inspection time, and provide useful data for subsequent failure analysis and research Its advantages make it able to play an important role in many fields.
The design of the SVE series allows for greater flexibility and ease of operation. Equipped with a universal viewing angle probe that can be rotated and bent in all directions, allowing engineers more flexibility in viewing the interior of the object being inspected. It also has an adjustable light source and lighting conditions, which can flexibly adjust the light intensity and color temperature as needed to adapt to different inspection needs.
Secondly, endoscopes are also very convenient to operate. Endoscopes are usually equipped with easy-to-operate controllers, through which users can control the endoscope’s movements such as movement, telescoping and rotation. In addition, the controller can also provide a variety of functions and modes, such as image zoom in, zoom out, rotation, brightness adjustment, etc., so that the user can operate the endoscope more flexibly.
The SVE series endoscopes also have a variety of functions and features that make operation more flexible and convenient. There are video recording and photo taking functions to record the inspection process and save images for subsequent analysis and viewing.

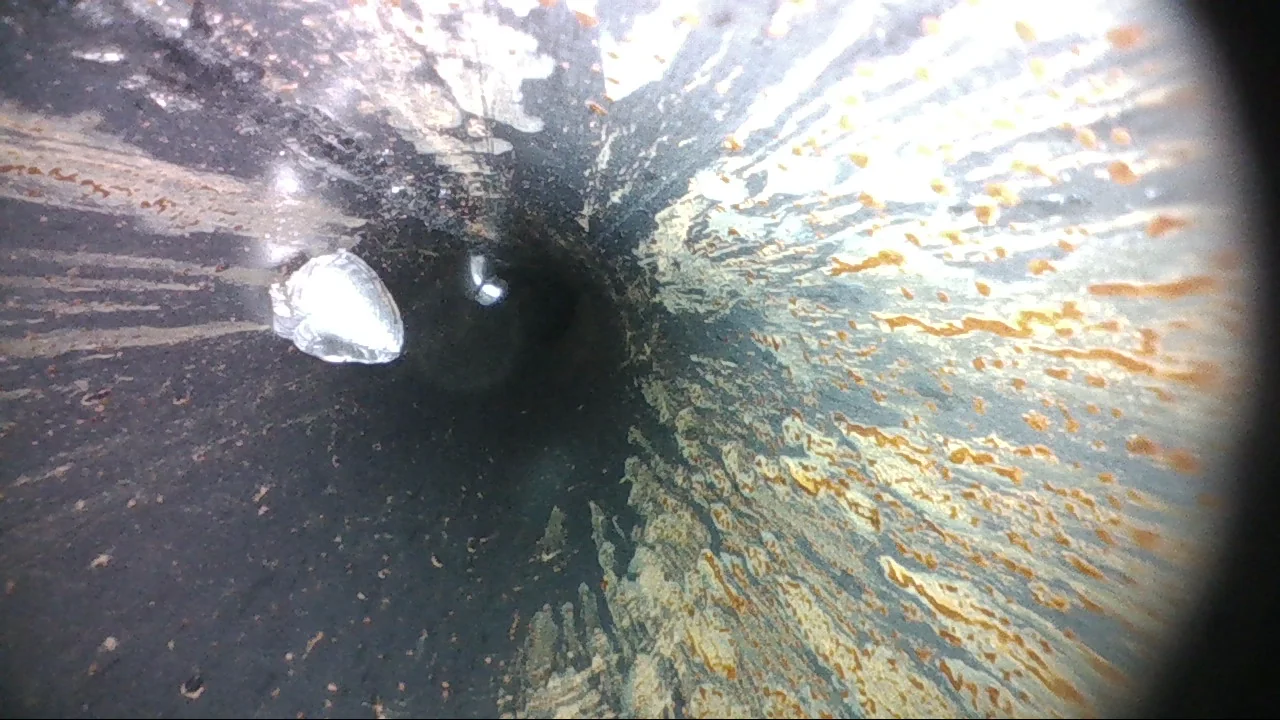

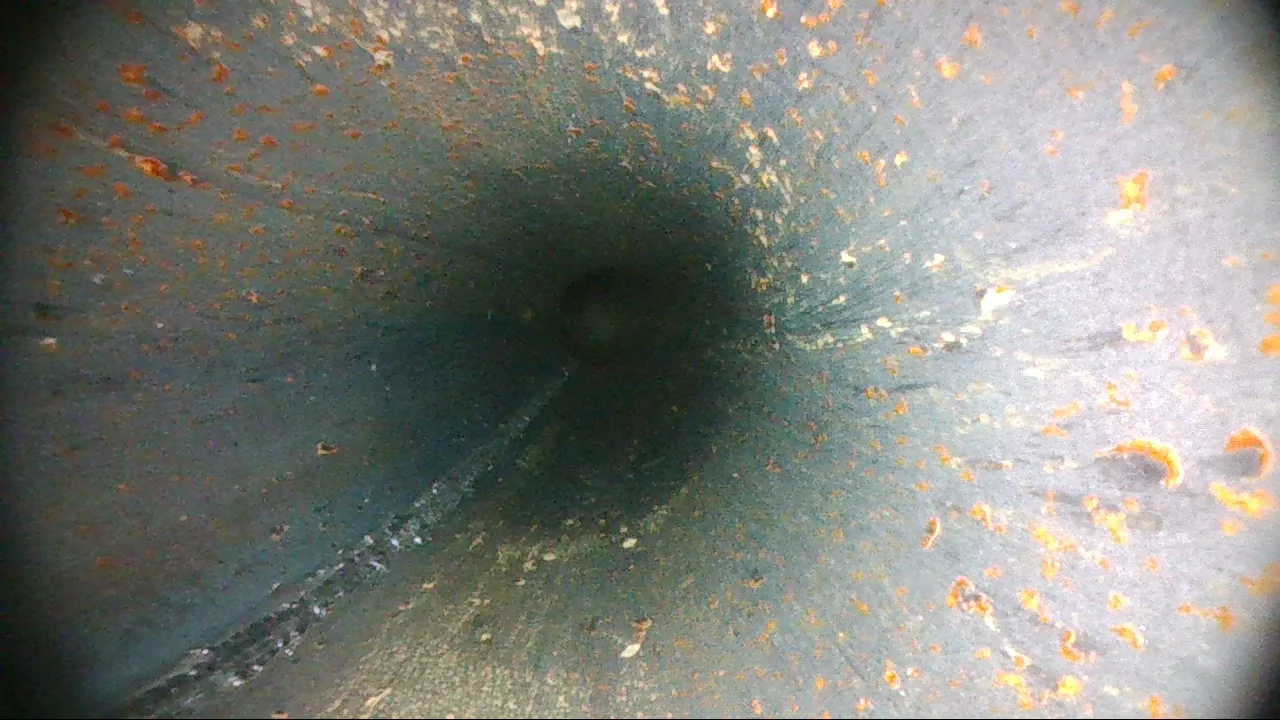

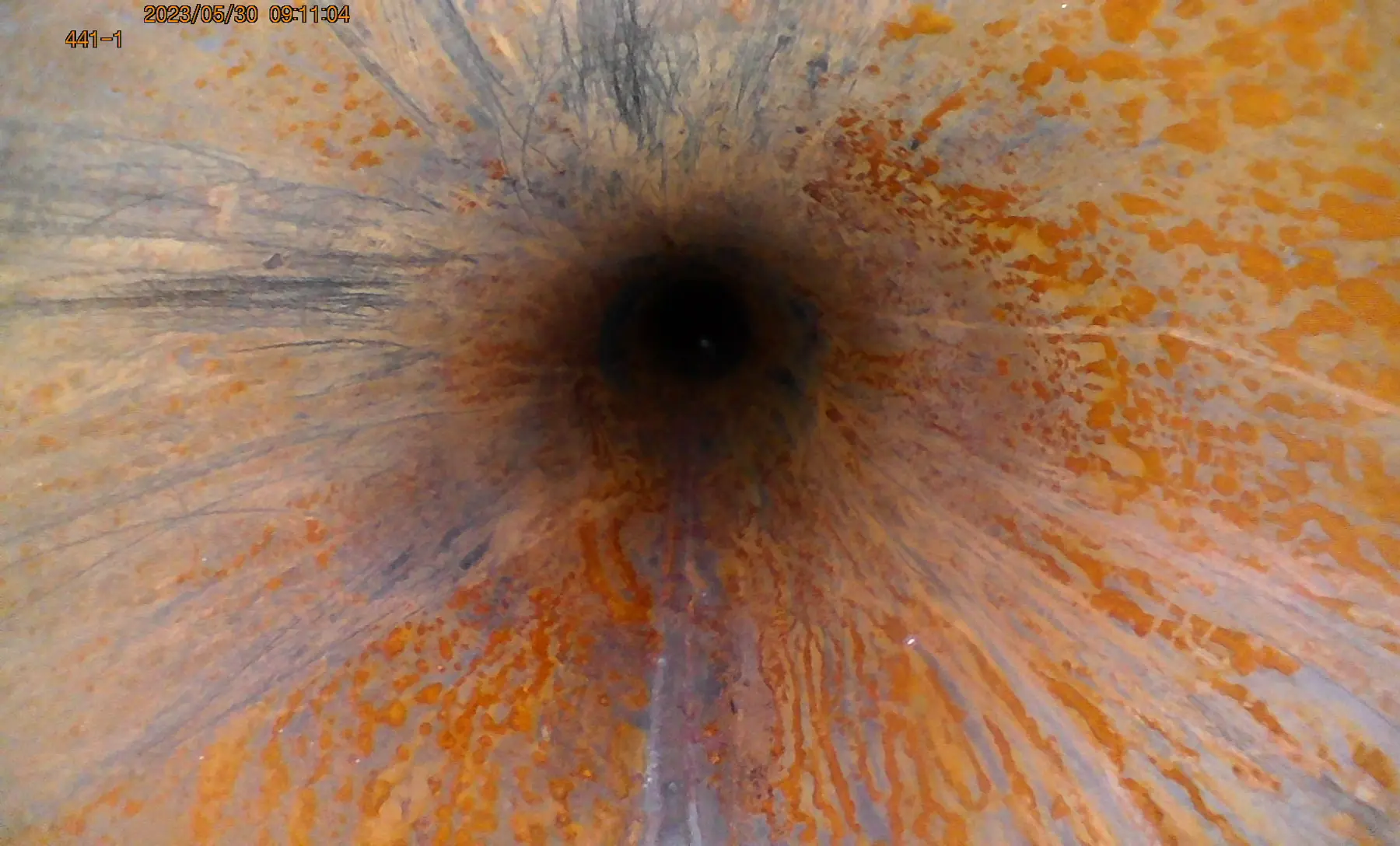

1. portable design, easy to operate, replaceable lithium battery, long working time, in a narrow space to check all kinds of industrial pipelines or complex equipment corrosion, cracks, welding, foreign objects, wear and tear and internal parts processing, and through the fine comprehensive inspection;
2. Ergonomic design concept, atmospheric appearance, the use of the feeling of perfection, a handful of mastery;
3. Various specifications of cameras are optional;
4. Mechanical control of 360-degree all-round rotation, unilateral bending greater than 150 degrees, flexible control, labor-saving, improve work efficiency, compared with the electric power steering failure rate is low; with steering lock
5. High-definition 3.5-inch LCD intelligent camera, video integration function, convenient and timely recording of test data;
6. Front-end ultra-bright LED lighting, optimized lighting system design, some can be equipped with high-brightness fiber optic lighting;
7. With WiFi function, you can watch the testing video with your cell phone/iPad at the same time;
8. Ergonomic design concept, the appearance of the atmosphere, the use of the feeling of perfection, a handful of control
9. Mechanical control of 360-degree all-round rotation, unilateral bending greater than 150 degrees, flexible control, labor-saving, improve work efficiency, relative to the electric power steering failure rate is low; with steering lock;
10. High-definition liquid crystal intelligent camera, video integration function, convenient and timely recording of test data; high-power battery life;
11. Front-end ultra-bright LED lighting, optimized lighting system design, some can be equipped with high-brightness fiber optic lighting.
Lens with sapphire glass, durable;
outer diameter | Φ2.0 | Φ 2.8 | Φ4.0 | Φ6.0 | |
Pixels | 520,000 pixels | 520,000 pixels | 1,000,000 pixels | ||
Field of view | 120 degrees | 120 degrees | 120 degrees | ||
Depth of Field | 5-50 mm | 5-50 mm | 5 – 100 mm | ||
Observation direction | Forward | Front view, side view | |||
Probe length | 5 mm |
| 16 mm | 16 mm | |
Bending angle | 180 |
| 180 | 180 | |
Insertion tube material | High wear-resistant tungsten wire braiding | ||||
Insertion tube length | Standard length 1 meter (can be extended) | ||||
|
Joystick control and direction | Four-way steering | Fixed position | Fixed internal resistance |
Guide angle | One side > 90° | Lead distance and length | Standard 1 meter |
Axis control | 360° axial rotation | Insertion tube | 4-layer tungsten wire braided tube |
System weight | Bare metal: <1 kg | Host size | 14.5cm x 10.5cm x 4.5cm |
power supply | Lithium battery: 3.7V, 3600mAh | Structural materials | Plastic PC shell |
LCD screen | Bright 3.5 -inch color display | Dimming | Manual adjustment 4 gears |
Data I/O ports | USB2.0 port , WiFi | Memory | 16G high-speed SD card |
Button functions | Menu operation, video, photo | White Balance | Automatic white balance |
Imaging function | Image mirroring, zooming, previewing , recording | Language support | Support 12 countries |
Host system operating temperature | -10°C~50°C, the LCD panel must be heated to below 0°C | relative humidity | Maximum 90%, no condensation |
Video probe operating temperature | -20°C~60°C, below 0°C the boot operation should be reduced | water proof | Probe and objective lens can withstand IP67 waterproof |
Storage temperature | -20°C～60°C |
|
|
